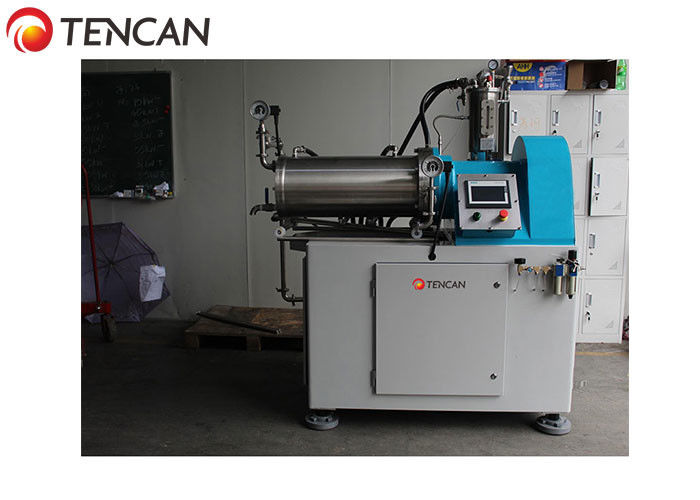

• Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power
Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power

Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power

Product Details:

Place of Origin: China
Brand Name: Tencan
Certification: CE
Model Number: KNB-L-1L

Payment & Shipping Terms:

Minimum Order Quantity: One set
Packaging Details: Plywood case
Delivery Time: 5-8 working after receiving
Payment Terms: T/T
Get Best Price Contact Now

Detail Information

Machine Name: Nano Scale Bead Mill Model: KNB-L-1L
Batch Size: 3-30L Power Supply: 380V/50Hz/60Hz 3 Phase
Power: 5.5KW Weight: 200kgs
Dimensions: 530*470*625mm
High Light:

Nano Scale Wet Milling Bead Mill

,

Double Power Bead Mill 5.5KW

,

Touch Screen Bead Mill 380V

Product Description

   Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill,Double Power Nano Bead Mill



Specifications



Model Active Volume

Power

(KW)

Batch Size

(L)

Batch Size

(L)

Media size

(mm)

Weight

(kgs)

Dimensions

(mm)

KNB-L-1L 1L 5.5 / 3-30 0.03-1.0 200 530*470*625
KNB-L-2L 2L 7.5 4 5-50 0.03-1.0 500 980*750*1550
KNB-L-6L 6L 18.5 7.5 15-100 0.03-1.0 1200 2000*1250*1450
KNB-L-10L 10L 22 11 30-200 0.03-1.0 1400 2200*1250*1500
KNB-L-30L 30L 45 18.5 60-500 0.03-1.0 2100 2350*1550*1850
KNB-L-60L 60L 75 22 150-1000 0.03-1.0 3600 2600*1750*1900
KNB-L-150L 150L 185 30 300-3000 0.03-1.0 7500



3200*1900*2100




Features

1. Adapted to 0.03 mm grinding media in dynamic centrifugal separation system,

allow ultra fine grinding requirements below 100nm.
2.Totally new structure design of centrifugal separation system to advoid leakaging of beads.
3.The separation system without screen will never block the outlet.
4. With rod pin grinding system, that guarantee high efficiency and narrow particle size distribution
5. Advanced mechanical seal technology to prevent the loss of leakage.
6. Pressure and temperature automatic safety protection device.
6. Optional products contact material to meet different grin ding requirements.
7.Touch screen or PLC control panel, easily for operation.





                                                                            Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power 0

Technical data

  • Initial particle size :<50um
  • After ground :0.05-1um
  • Solvent : Water-base,oil-base
  • Viscosity :<20000CPS
  • Grinding media size:0.03-1.0mm
  • Rotor material:Ceramics,Hard alloy,Tungsten carbide,PU
  • Inner cylinder material:Ceramics,Hard alloy,Tungsten carbide,PU

Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power 1











BROCHURE OF BEAD MILL





What is bead mill?



Wet grinding bead mill is a kind of machine for ultra-fine processing of solids in liquids. High energy input through the grinding media to create strong shear and impact force to dispersing, disaggregating and homogenizing the particles in the slurry.



Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power 2



What is the benefits ?



Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power 3





How to select a agitator bead mill, KEY points?



A. Flow rate of bead mill determines how long time the particles stay in the grinding zone,which affects the fineness of particles, output and particle size distribution.

B. Linear velocity of rotor determines the intensity of kinetic energy that transffered to the grinding media which affects the grinding efficiency, fineness of particles and wear loss of grinding media. 12-16 m/s is the generally operation speed.

C. Grinding media size selection is a key point, usually it is 1000 times of the target particle size. In theory, smaller the diameter of the beads is, more the contact point exists with smaller particle size achievements. However, It still depends on many factors like initial particle size. We need to choose the correct beads to fit different grinding requirements.

D. Generally, the grinding media filling rate is higher, the grinding efficient is higher. And the range of filling rate is around 75%-90% according to the viscosity of products. If too much higher will cause sieve blocking and high temperature problem.

E. Bulk density of grinding media-higher the bulk density will create stronger shear and impact force in the movement , better grinding efficiency it is.

F. Gap of separation screen is usually 1/2-1/4 times of the grinding media diameter. If the particle initial size is much bigger, it may block the sieve, hence, we need to consider two stage grinding process.



Working principle



Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power 4



Comparison between bead mill and ball mill



Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power 5

Features



1. The whole system controlled by PLC and industrial computer,to realize the intelligent process control from raw material feeding, pre-mixing, ultra fine grinding ,filtration, iron-removal,spray drying and canning pack.

2. Interface touch screen display and monitor the running status of the whole system.

3. Pre-setting different grinding program recipe to realize switch grinding process easily.

4. Automatic store and analysis the running data

5. High precision sensors and gauges keeps the stability and safety operation

l6.To save labor cost, improve efficiency and create more benefits to our customers.





General application



New energy: Lithium-ion battery, lsilicon carbon, graphene, carbon nanotubes, alumina membrane slurry, PVDF membrane slurry, etc.

Powder: Alumina, Zirconia, Silicon Carbide, Titanium Dioxide, Calcium Carbonate, Silicon Materials, Cerium oxide, Zinc oxide, Barium Titanate, MLCC, Boron Nitride, Boron carbide, magnetic materials, etc.

Chemicals: Automotive coating, furniture paint, anticorrosive paint, special paint, color paste, ceramic ink, UV ink, glass ink,offset ink, cosmetics, pharma , food, agriculture and others to provide a complete set of solutions.



Automatic production line platform



Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power 6



Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power 7



Tencan KNB-L-1L 5.5KW Nano Scale Wet Milling Bead Mill Double Power 8
